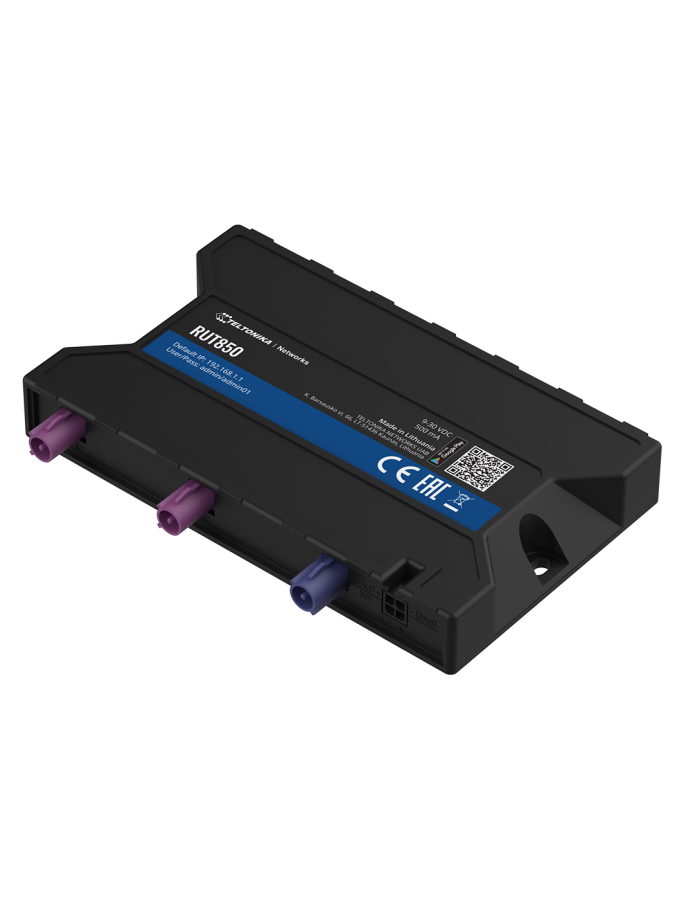

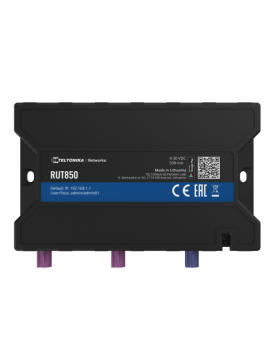

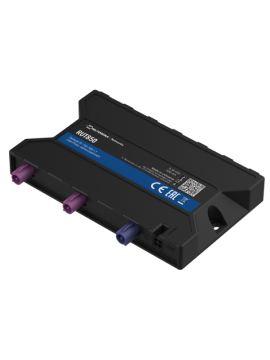

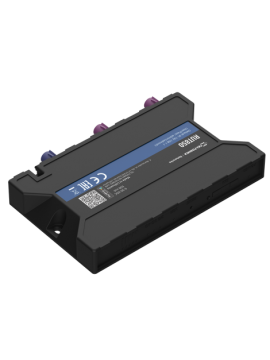

RUT850 TELTONIKA

RUT850 TELTONIKA, MOBILE Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps, Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, scheduled SMS, SMS autoreply, Black/White list Black/White list, Band management Band lock, Used band status display, APN Auto APN, Multiple PDN (optional) Possibility to use different PDNs for multiple network access and services (not available in standard FW), WIRELESS Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA), WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation, SSID SSID stealth mode and access control based on MAC address, WiFi users Up to 80 simultaneous connections, Hotspot Captive portal (Hotspot), internal/external Radius server , built in customizable landing page, NETWORK Routing Static routing, Network protocols TCP, UDP, IPv4, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP, SSH, DHCP, Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Firewall Port forward, traffic rules, custom rules, DHCP Static and dynamic IP allocation, DDNS Supported >25 service providers, others can be configured manually, Network backup Mobile and WiFi WAN options, each of which can be used as backup, using automatic Failover, SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW), SECURITY Authentication Pre-shared key, digital certificates, X.509 certificates, Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T, Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks), Mobile quota control Set up custom data limits for the SIM card, WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only, Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter, VPN OpenVPN Multiple clients and server can be running simultaneously, 12 encryption methods, OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, IPsec IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256), L2TP Client/Server services can run simultaneously, MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log, FOTA Firmware update from sever, automatic notification, SSH SSH (v1, v2), SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem, RMS Teltonika Remote Management System (RMS), SYSTEM CHARACTERISTICS CPU Atheros Hornet, MIPS 74Kc, 550 MHz, RAM 64 MB, DDR2, FLASH storage 16 MB, SPI Flash, FIRMWARE / CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point, FOTA Update FW/configuration from server, RMS Update FW/configuration for multiple devices, Keep settings Update FW without losing current configuration, FIRMWARE CUSTOMIZATION Operating system RutOS (OpenWrt based Linux OS), Supported languages Busybox shell, Lua, C, C++, Development tools GPL package with built environment provided, LOCATION TRACKING GNSS GPS, GLONASS, BeiDou, Galileo and QZSS, Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS, NMEA NMEA 0183, Server software Supported server software TAVL, RMS, Mobile Network Geolocation Location without using GPS, get approximate location based on mobile tower on RMS, Startup Hot start u003C 2.5 s, Warm start u003C 26 s, Cold start u003C 35 s, Tracking 55 simultaneous satellites channels, Sensitivity -157 dBM, Accuracy u003C 1.5 m, Geofencing Configurable multiple geofence zones, POWER Connector 4 pin DC power socket, Input voltage range 9 – 30 VDC, reverse polarity protection, overvoltage protection up to 60 VDC, surge protection >66 VDC 10us max, Power consumption u003C 5W, PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) Status LEDs 3 x connection type status LEDs, 1 x WiFi status LED, 5 x connection strength LEDs, 1 x Power LED, SIM 1 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder, Power 1 x 4 pin DC connector, Antennas 2 x FAKRA connectors for LTE, 1 x FAKRA connector for GNSS, Reset Reboot/Factory reset button, PHYSICAL SPECIFICATION Casing material Plastic housing, plastic panels, Dimensions (W x H x D) 131 x 18 x 79 mm, Weight 115 g, OPERATING ENVIRONMENT Operating temperature -40 °C to 75 °C, Operating humidity 10% to 90% non-condensing, Ingress Protection Rating IP30, REGULATORY & TYPE APPROVALS Regulatory CE/RED, EAC, RoHS, WEEE, Operator AT&T (planned), Verizon (planned), Vehicle ECE R10 (E-mark), EMI IMMUNITY Standards Draft EN 303 446-1 V1.1.0, ESD EN61000-4-2:2009, RS EN 61000-4-3:2006, A1:2008 and A2:2010, EFT EN 61000-4-4:2004, CS EN 61000-4-6:2009, RF Standards EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0, SAFETY Standards IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013nEN 50665:2017, EN 62311:2008, , RUT850 TELTONIKA
