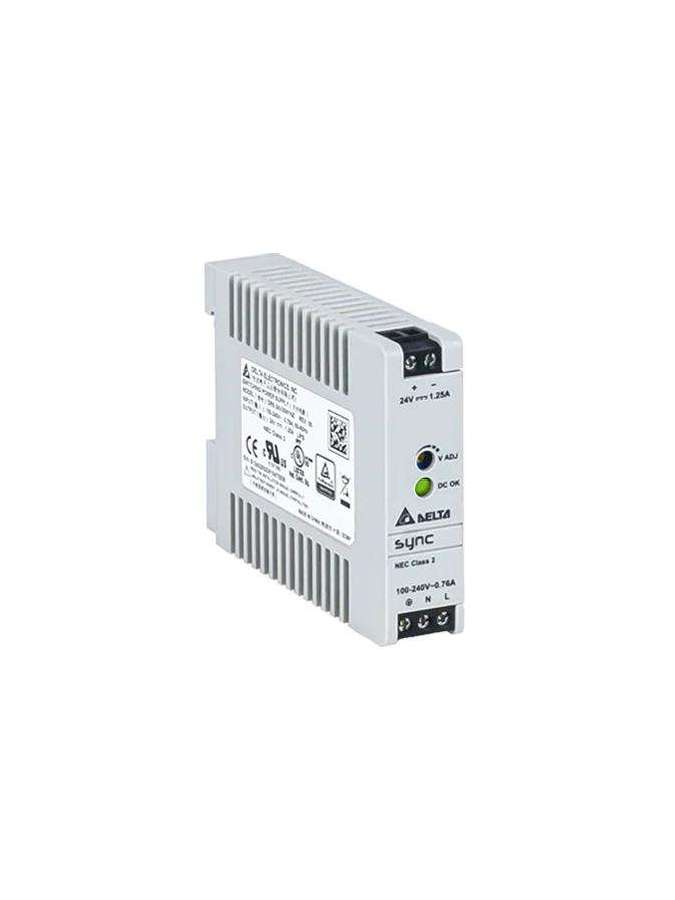

DRS-24V30W1NZ DELTA
DRS-24V30W1NZ
Ficha técnica
- Output Current
- 1.25A
- Output Voltage
- 24V
- Output Power
- 30W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Case Chassis / Cover
- Plastic
- Cooling System
- Convection
- Operating Temperature
- -20°C to +70°C (Cold start at -40°C @ 40% load)
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions
- Degree of Protection
- IP20
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- Harmonic Current Emissions
- IEC/EN 61000-3-2, Class A
- Voltage Fluctuation and Flicker
- IEC/EN 61000-3-3
- Dynamic Response (Overshoot and Undershoot O/P Voltage)
- ± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/µs, 50% duty cycle @ 5Hz to 1KHz)
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions
- Shock Test (Non-Operating)
- IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total
- Overload / Overcurrent
- 105~140% of rated load current, Foldback Mode (continuous current, voltage drops), Auto-recovery when the fault is removed
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
- Protection Against Shock
- Class I with PE connection
- Output Voltage Adjustment Range
- 24-28Vdc
- Start-up with Capacitive Loads
- 3,000µF Max
- Safety Entry Low Voltage
- SELV (EN 60950)
- Immunity
- Generic Standards: EN 55024, EN 61000-6-1, EN 61000-6-2
- DC Input Voltage Range
- 120-375Vdc
- Indicator
- Green LED: DC OK
- Shock Test (Operating)
- IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis
- Industrial Control Equipment
- UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)
- Material and Parts
- RoHS Directive 2011/65/EU Compliant
- Component Power Supply for General Use
- EN 61204-3
- Over Voltage Category
- II
