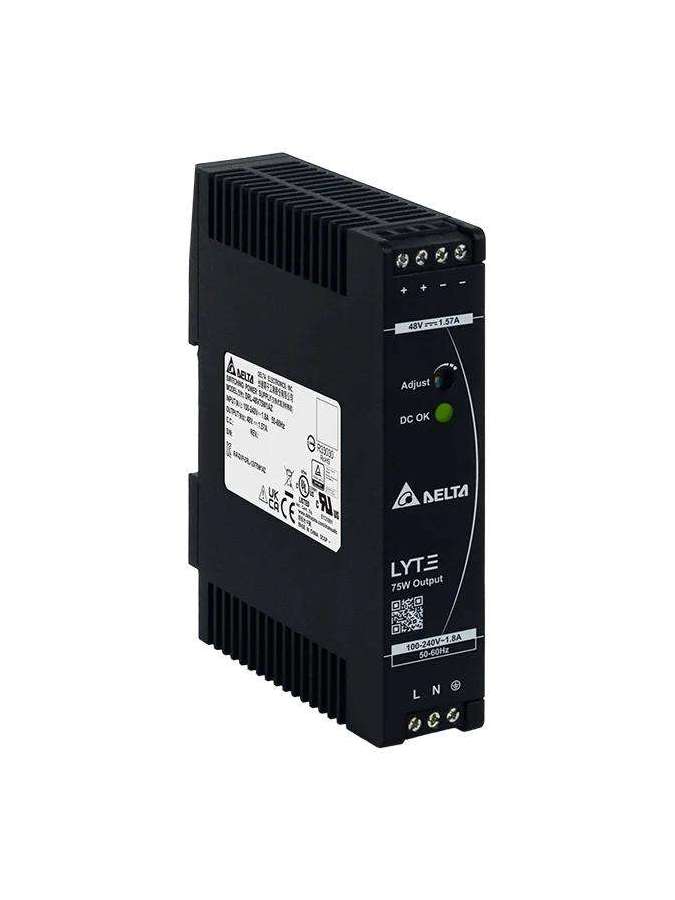

DRL-48V75W1AZ DELTA
DRL-48V75W1AZ
Ficha técnica
- Output Current
- 1.57A
- Output Voltage
- 48V
- Output Power
- 75.36W
- Nominal Input Voltage
- 100-240Vac
- Input Voltage Range
- 85-264Vac
- Nominal Input Frequency
- 50-60Hz
- Input Frequency Range
- 47-63Hz
- Input Current
- 1.4A typ. @ 115Vac, 0.9A typ. @ 230Vac
- Efficiency at 100% load
- 90% typ. @ 230Vac
- Inrush Current
- 50A typ. @ 230Vac
- Case Chassis / Cover
- Plastic
- Cooling System
- Convection
- Operating Temperature
- -20°C to +70°C (-30°C Cold Start)
- Storage Temperature
- -40°C to +85°C
- Operating Humidity
- 5 to 95% RH (Non-Condensing)
- Vibration (Non-Operating)
- IEC 60068-2-6, Random: 5Hz to 500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions
- Degree of Protection
- IP20
- Expected Cap Life Time
- 10 years (115Vac & 230Vac, 50% load @ 40°C)
- CE
- In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UKCA
- In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016
- Harmonic Current Emissions
- IEC/EN/BS EN 61000-3-2, Class A; GB17625.1
- Voltage Fluctuation and Flicker
- IEC/EN/BS EN 61000-3-3
- Vibration (Operating)
- IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/s² (2G peak); displacement of 0.35mm; 10 min per cycle, 60 min for X direction
- Shock Test (Non-Operating)
- IEC 60068-2-27, Half Sine Wave: 50G for duration of 11ms; 3 times per direction, 9 times in total
- Overload / Overcurrent
- 105 - 133% of rated load current, Constant current limit, Auto-recovery
- Over Temperature
- Latch Mode
- Short Circuit
- Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
- Protection Against Shock
- Class I with Primary Earth connection
- Output Voltage Adjustment Range
- 43.2-52.8Vdc
- Start-up with Capacitive Loads
- 4,000µF Max
- Operating Altitude
- 0 to 5,000 Meters (16,400 ft.)
- Immunity
- EN/BS EN 55035, EN/BS EN 55024 Compliance with: EN/BS EN 61000-6-1
- DC Input Voltage Range
- 120-375 Vdc
- Indicator
- Green LED (DC OK)
- Shock Test (Operating)
- IEC 60068-2-27, Half Sine Wave: 10G for duration of 11ms; 1 time in X axis
- Pollution Degree
- 2
- Component Power Supply for General Use
- EN/BS EN 61204-3
- Rise Time
- 30ms typ. @ nominal input (100% load)
- Over Voltage Category
- II
Referencias específicas
Nuevo
Descargas
Datasheet-DRL-48V75W1AZ.pdfNo customer reviews for the moment.
