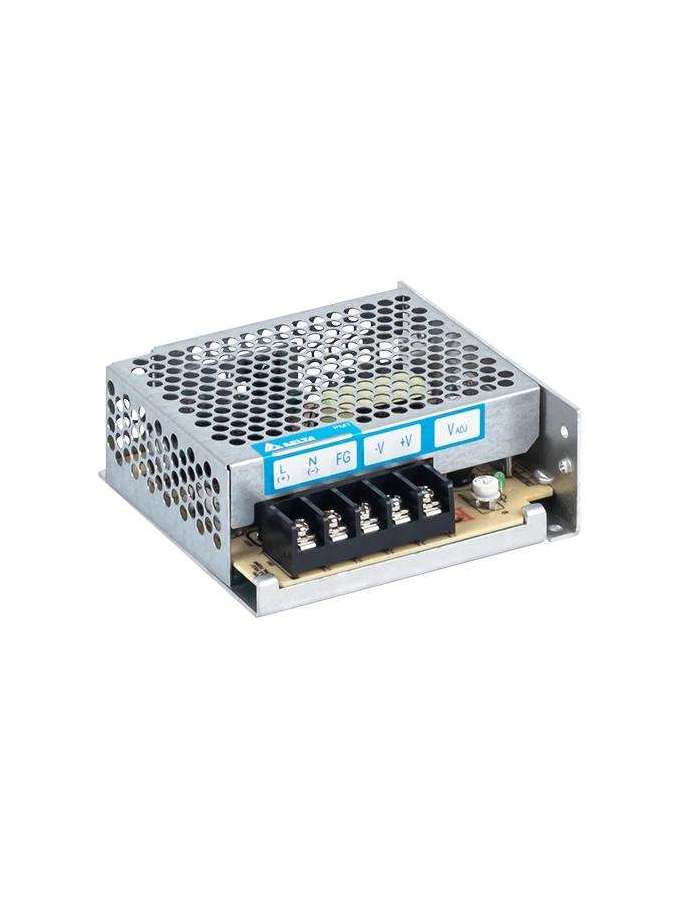

PMT-12V35W1AA DELTA

Ficha técnica

Output Current

2.92A

Output Voltage

12V

Output Power

35W

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 5% @ 0-100% load (Slew Rate: 0.1A/µS, 50% duty cycle @ 5Hz)

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Case Chassis / Cover

SGCC / Aluminium

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

16V, +10% / -5%, SELV Output, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Non-Latching (Auto-Recovery)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IPX0

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Power Factor at 100% load

Conform to EN61000-3-2

Cooling System

Convection

Immunity

EN/BS EN 55024

Output Voltage Adjustment Range

11-14Vdc

Start-up with Capacitive Loads

8,000µF Max

Pollution Degree

2

Safety Entry Low Voltage

SELV

Over Voltage Category

II
