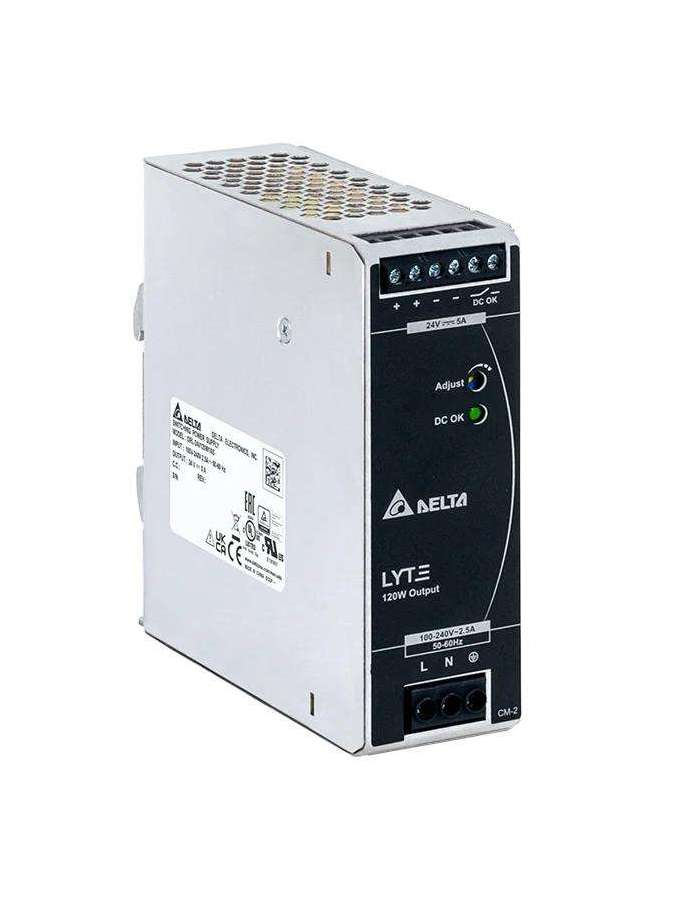

DRL-24V120W1AA DELTA

Ficha técnica

Output Current

5A

Output Voltage

24V

Output Power

120W

Start-up Time

200ms typ. @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot and Undershoot O/P Voltage)

± 10% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/µs)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Efficiency at 100% load

85% typ. @ 115Vac, 88% typ. @ 230Vac

Case Chassis / Cover

SGCC / Aluminium

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 27, Half Sine Wave: 50G for duration of 11ms; 3 times per direction, 9 times in total

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Overvoltage

28.8V-35.2V, SELV Output, Latch Mode

Overload / Overcurrent

105-150% of rated load current, Continuous current

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Degree of Protection

IP20

Protection Against Shock

Class I with Primary Earth connection

CE

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A; GB17625.1

Rise Time

30ms typ. @ nominal input (100% load)

Cooling System

Convection

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Immunity

Generic Standards: EN/BS EN 61000-6-1, EN/BS EN 61000-6-2, EN/BS EN 55024

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3

Indicator

Green LED (DC OK)

Input Terminal

3 Pins (Rated 600V/35A)

Output Terminal

6 Pins (Rated 300V/28A)

Output Voltage Adjustment Range

22-28Vdc

DC Input Voltage Range

120-375Vdc

Start-up with Capacitive Loads

8,000µF Max

Signal Terminal

6 Pins (Rated 300V/28A)

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/s² (2G peak); displacement of 0.35mm; 10 min per cycle, 60 min for X direction

Shock Test (Operating)

IEC 60068-2-27, 27, Half Sine Wave: 10G for duration of 11ms; 1 time in X axis

Pollution Degree

2

Industrial Control Equipment

UL 508 and CSA C22.2 No. 107.1-01 (File No. E338991)

Safety Entry Low Voltage

SELV

Component Power Supply for General Use

EN/BS EN 61204-3
